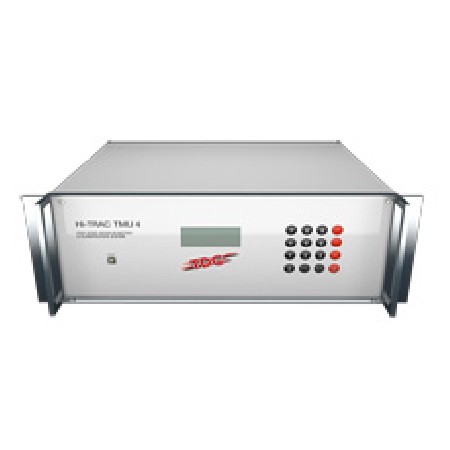

產品詳情：TMU4交通軸信號處理器

        The HI-TRAC? TMU4 is a high speed trafficdata collection system recording vehicle classifiation and axle load data without interruption to traffi flow.The HI-TRAC? TMU4 incorporates embedded Ethernet with TCP/IP stack, VPN and FTP as well as extensive 8 Gb data storage and thus provides high-end functionality at a reasonable cost.The standard configurationof two Class 1 piezo electric sensors and one inductive loop installed in the highway per lane provides axle weight data to COST 323 Class B(10) accuracy in addition to inter-axle spacing and vehicle speed data.The system can be used as a statistical data device to record highway trafficloading or it can also be used as a screening weighbridge to identify overloaded vehicles in the traffic steam.The HI-TRAC? TMU4 can be interfaced to trafficsignals or diversion signs to intercept overloaded vehicles and to ANPR or CCTV camera systems.The HI-TRAC? TMU4 uses TDC Systems advanced loop profilig techniques to improve vehicle classificationaccuracy and weight data is significantl improved with advanced automatic temperature compensation algorithms incorporated as standard.

稱重誤差：±10%
速度誤差：±1.5%
軸距誤差：±15%
車長誤差：±8%
流量精度：>99.5%
工作電壓：85～264VAC
工作溫度：-25℃～85℃
應        用：車輛超載報警，超速報警，跨道行駛報警功能
