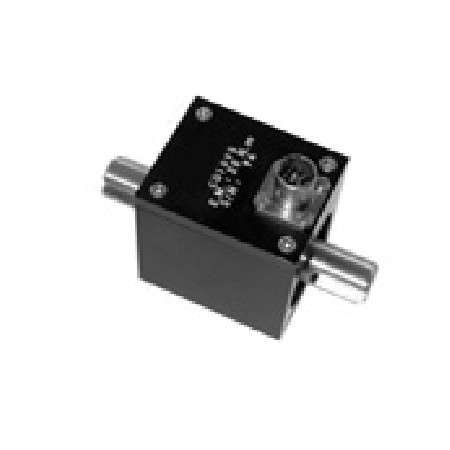

The CD1095 has been designed to measure in-line torque on rotating shafts. Its sensing element is based on thin layer strain gauges in a Wheatstone bridge configuration providing excellent temperature stability.

        Optionally the torque sensor can receive an on-board amplifier for high-level output.

        Another version with male square couplings exists under the reference CD1050.

        With ma long standing experience as a designer and manufacturer of sensors, TE CONNECTIVITY often works with customers to design or customize sensors for specific uses and testing environments.

        On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

封        裝：鍵軸連接
量        程：±5～±2.5KN（±4～±2KLbf）
非  線  性：<±0.25%FS
輸        出：±20mV（4V；±5V可選）
工作模式：動態旋轉扭矩
工作溫度：-20～80℃
特        點：高精度，內置放大
典型應用：過程控制設備，機器人和效應器，測試和測量
