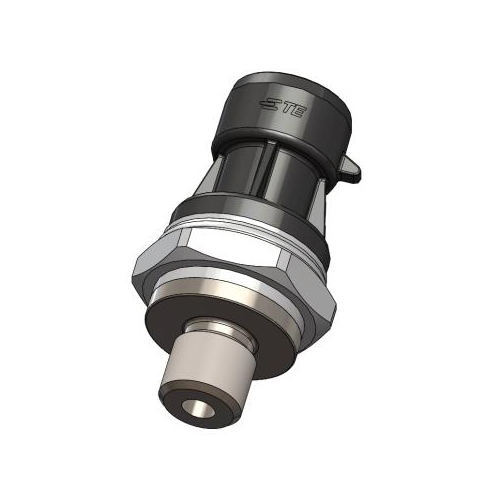

TE Connectivity’s MX1H2 Series is designed for on road hydrogen storage and distribution. The transducer utilizes TE’s proven MSG strain gage sensing technology and a single piece machined metal port and sense element. To enable hydrogen compatibility the sensor uses 316L stainless steel where contact with Hydrogen is expected. The result is a stable and durable interface to the hydrogen system.

        The MX1H2 series is validated for hydrogen systems through EC-79 environmental and durability testing and holds the EC-79 certification for on road vehicles. The transducer exceeds the maximum pressure ratings required for certification.

技術指標：

類       型：  表壓

量       程：  20，448，900Bar

精  確  度：  ±0.25%

輸       出： 0.5～4.5V

供電電源：  4.75～5.25V

工作溫度：  -40℃～125℃

電氣連接：  Packard

螺紋接口：  7/16-20UNF、3/8-24UNF

特       點：  EC79氫氣認證、反極性保護、高爆破壓力、符合ISO11452的EMC性能

典型應用：  運輸燃料電池系統、氫氣儲存、中壓分配回路
